Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Merknaam:	LVJOE
Modelnummer:	1300fm
Moq:	1 lijn
Prijs:	US $20000-200000
Betalingsvoorwaarden:	L/c, t/t
Toeleveringsvermogen:	10 regels per jaar

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Hebei, China (vasteland)

Certificering:

ISO CE

Productnaam:

Automatische/semi-automatische 60x60cm gipsplaten PVC gecoate gipsplafondtegels die machine maken

Trefwoord:

Machine voor het maken van PVC-gelamineerde gipsplaten

Afgewerkt bordtype:

PVC -gelamineerde gipsbord

Effectieve lamineren:

1300 mm

Elektrische regeling:

PLC -systeem

Productiecapaciteit:

2-6 miljoen m²/jaar

After-sales service:

Ingenieurs beschikbaar voor service

Lijmtype:

Waterlijm voor PVC -film

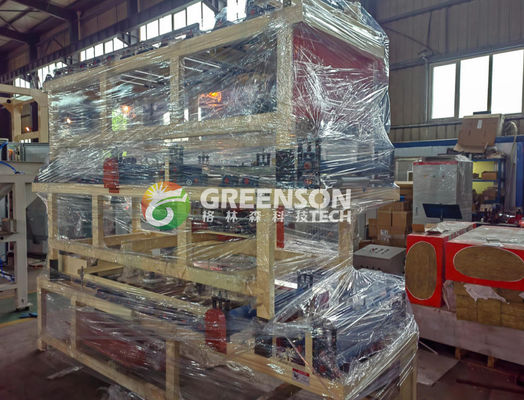

Verpakking Details:

Standaardpakking

Levering vermogen:

10 regels per jaar

Markeren:

60x60cm Gypsum Ceiling Tile Making Machine

1300mm Effective Laminating PVC Coated Gypsum Board Machine

2-6 Million Sq.m/year Gypsum Board Lamination Machine

Productbeschrijving

Automatic/Semi-Automatic 60x60cm Drywall PVC Coated Gypsum Ceiling Tiles Making Machine

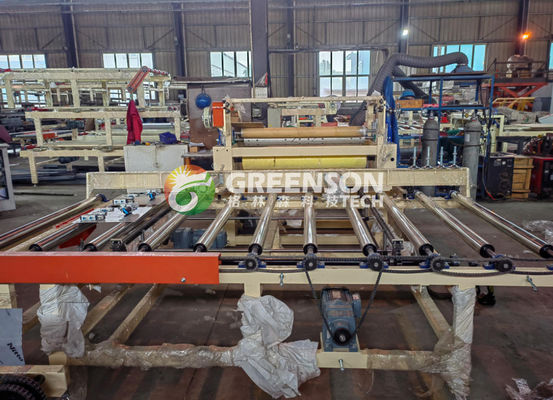

This advanced machine is designed for laminating fiber glass, paper, PVC film and aluminum foil on gypsum board to produce high-quality ceiling tiles and partition wall panels.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

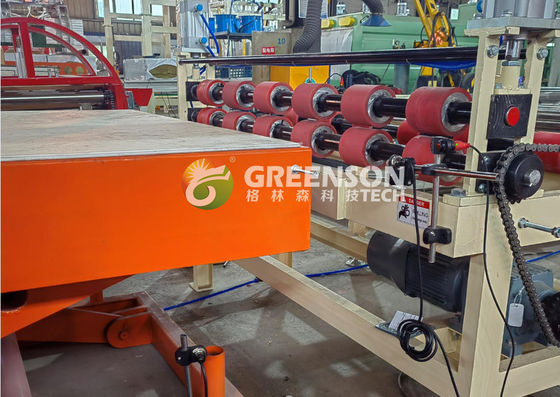

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum board from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

Automatic Cutting Machine

Dual cutting system: vertical/longitudinal and horizontal cutting
Equipped with dust collector system
Converts 1.2*2.4m boards to 603*603mm/595*595mm tiles
Cutting speed: 15m/min
Cutting knives: Vertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power: 17.15KW

Technical Specifications

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-6 million Sq.m
Film material: PVC film, aluminum foils, decorative material
Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

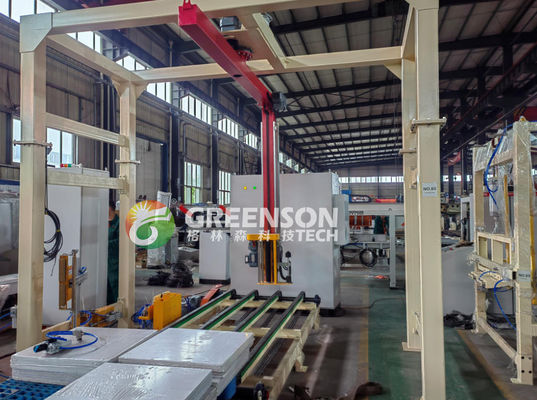

Stacking mode: 10 layers (4 packages/layer)
Cutting mode: Lengthways: 3 blades, Horizontal: 5 blades
Overall dimension: Length: 56000mm, Width: 9200mm
Lamination mode: Double side or single side options
