High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

Merknaam:	Greenson
Moq:	1
Prijs:	$790000
Betalingsvoorwaarden:	L/C, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Hebei

Productnaam:

Hoge snelheid energiebesparend steenwol sandwichpaneel dat machine te koop maakt

Trefwoord:

vuurvaste productielijn voor steenwolpanelen

Sollicitatie:

Gebouw

Kleur:

De eis van de klant

OEM:

Functie:

Volautomatisch

Verpakking Details:

Kunststof folie

Verzendhaven:

TianJin

kerncomponenten:

PLC, Motor, Lager, Motor, Pomp

belangrijkste verkoopargumenten:

Eenvoudig te bedienen

Productbeschrijving

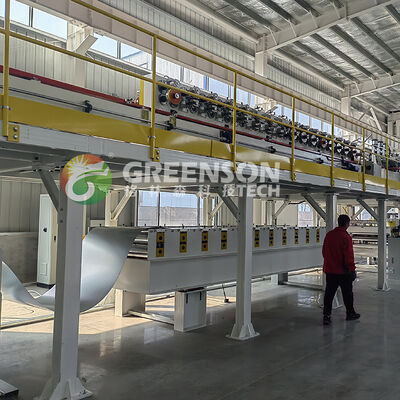

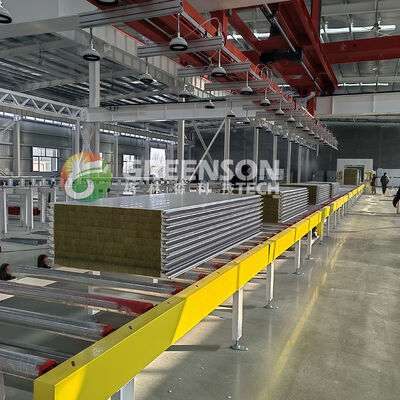

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
