Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

Merknaam:	Greenson
Moq:	1
Prijs:	$790000
Betalingsvoorwaarden:	L/C, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Hebei

Productnaam:

Aangepaste automatische steenwol sandwichpaneel productielijn met goede kwaliteit

Trefwoord:

Energiebesparende productielijnfabrikant van steenwolsandwichpanelen

Kleur:

De eis van de klant

Functie:

Volautomatisch

Verpakking Details:

Kunststof folie

Verzendhaven:

TianJin

kerncomponenten:

PLC, Motor, Lager, Motor, Pomp

belangrijkste verkoopargumenten:

Eenvoudig te bedienen

Sollicitatie:

Dak En Muur

Spanning:

380V 50Hz 3 fasen (veranderlijk naar behoefte)

Productbeschrijving

Customized Automatic Rock Wool Sandwich Panel Production Line With Good Quality

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

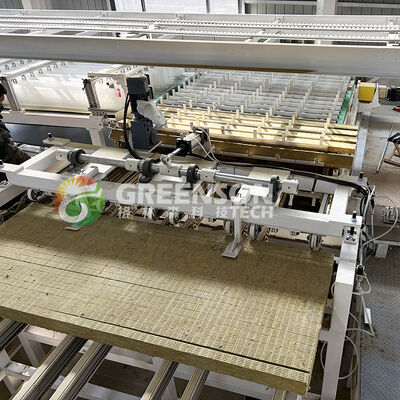

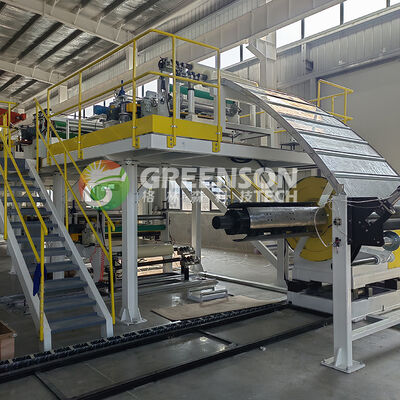

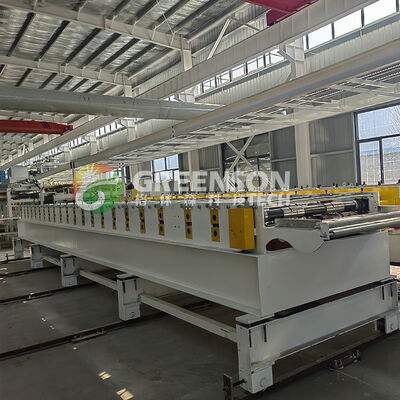

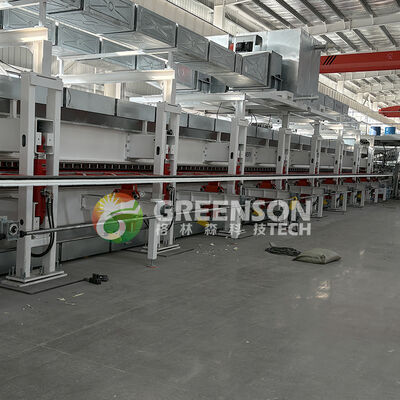

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

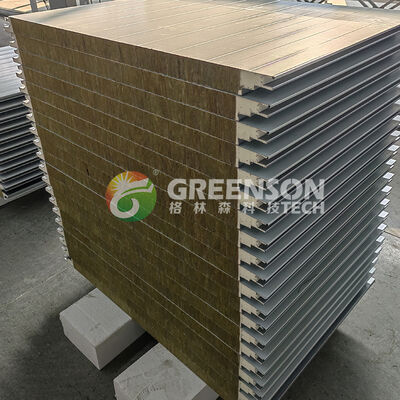

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
