Fully Automatic High Capacity Variable Speed Continuous PU PIR Sandwich Panel Production Line

Fully Automatic High Capacity Variable Speed Continuous PU PIR Sandwich Panel Production Line

Merknaam:	Greenson
Moq:	1
Prijs:	$700000-$800000
Betalingsvoorwaarden:	L/C, T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Hebei

Productnaam:

Continue polyurethaan PIR PU sandwichpaneel machineproductielijn

Trefwoord:

Discontinue en continue PU-vormende productielijn voor sandwichpanelen

Kleur:

De eis van de klant

Verpakking Details:

Kunststof folie

Verzendhaven:

TianJin

kerncomponenten:

Motor, lager

Materiaal gezichtslaag:

Voorgelakt gegalvaniseerd staal (PPGI) / Al-Zn gecoat staal

Substraatdikte:

0.3 mm - 0.8 mm

Plaats van herkomst:

Hebei, China

Productbeschrijving

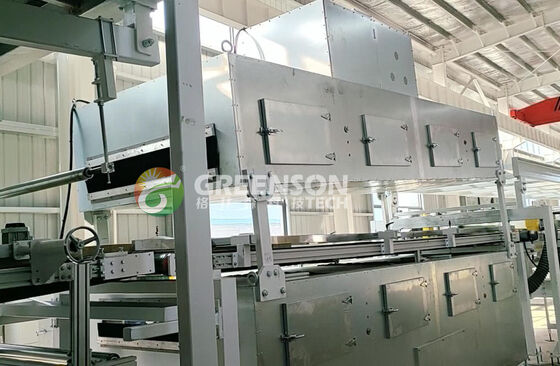

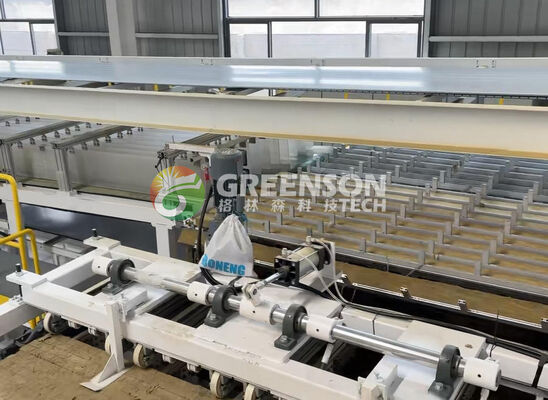

Continuous Polyurethane PIR PU Sandwich Panel Machine Production Line

Product Overview

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 mm
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
